Product Description

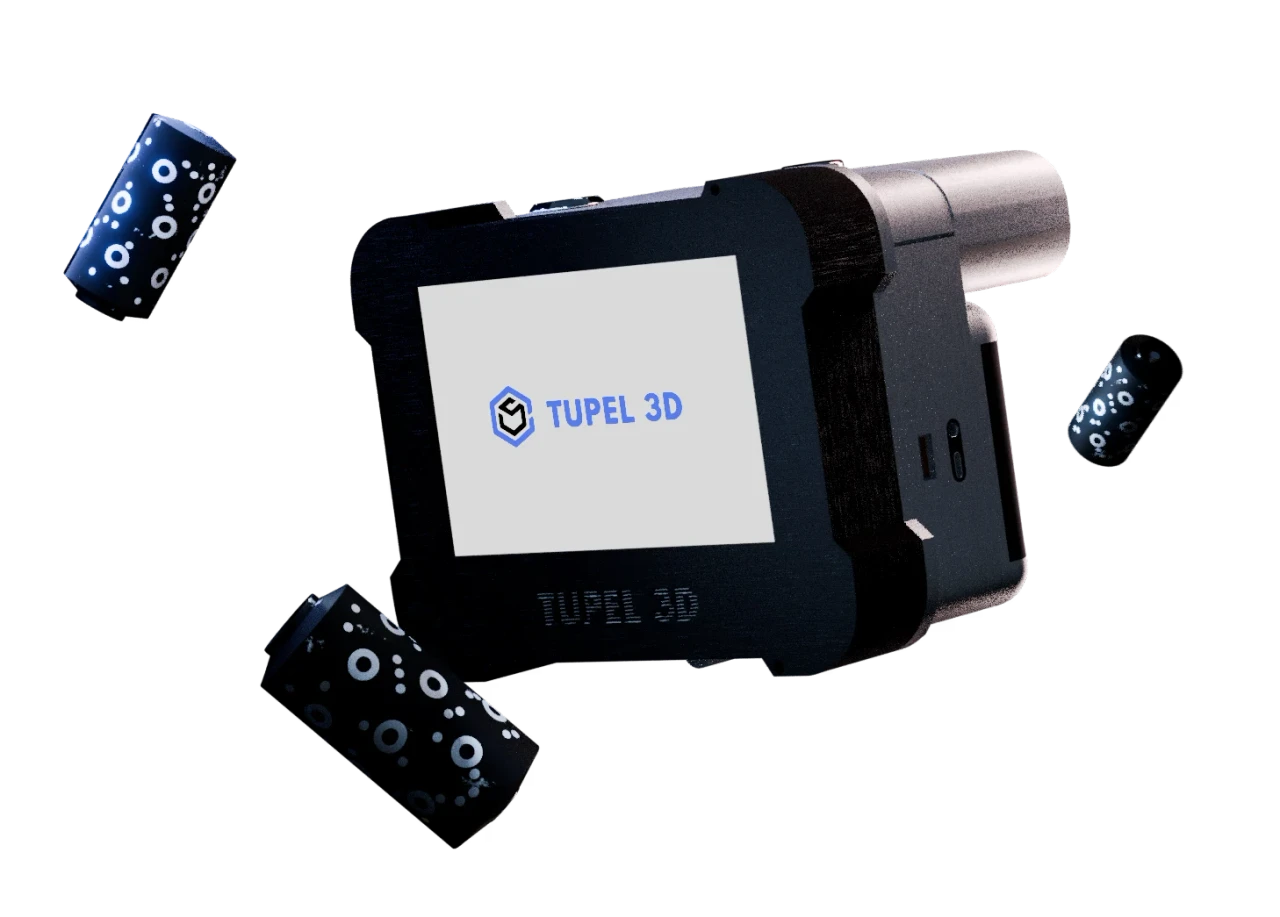

Tupel 3D Camera Package
- Tupel 3D MK3 Camera
- Set of 6 DOT Posts

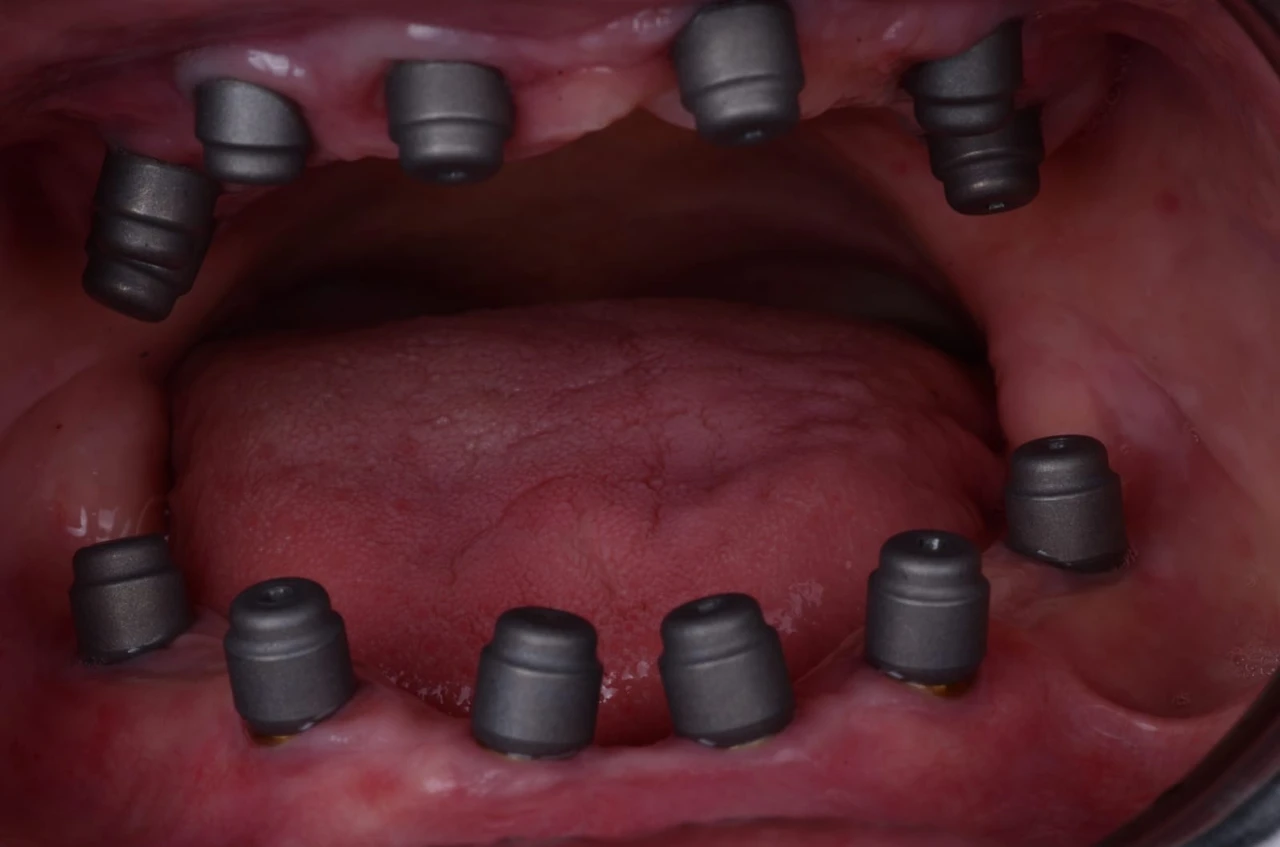

- Set of 6 GenX Healing Caps

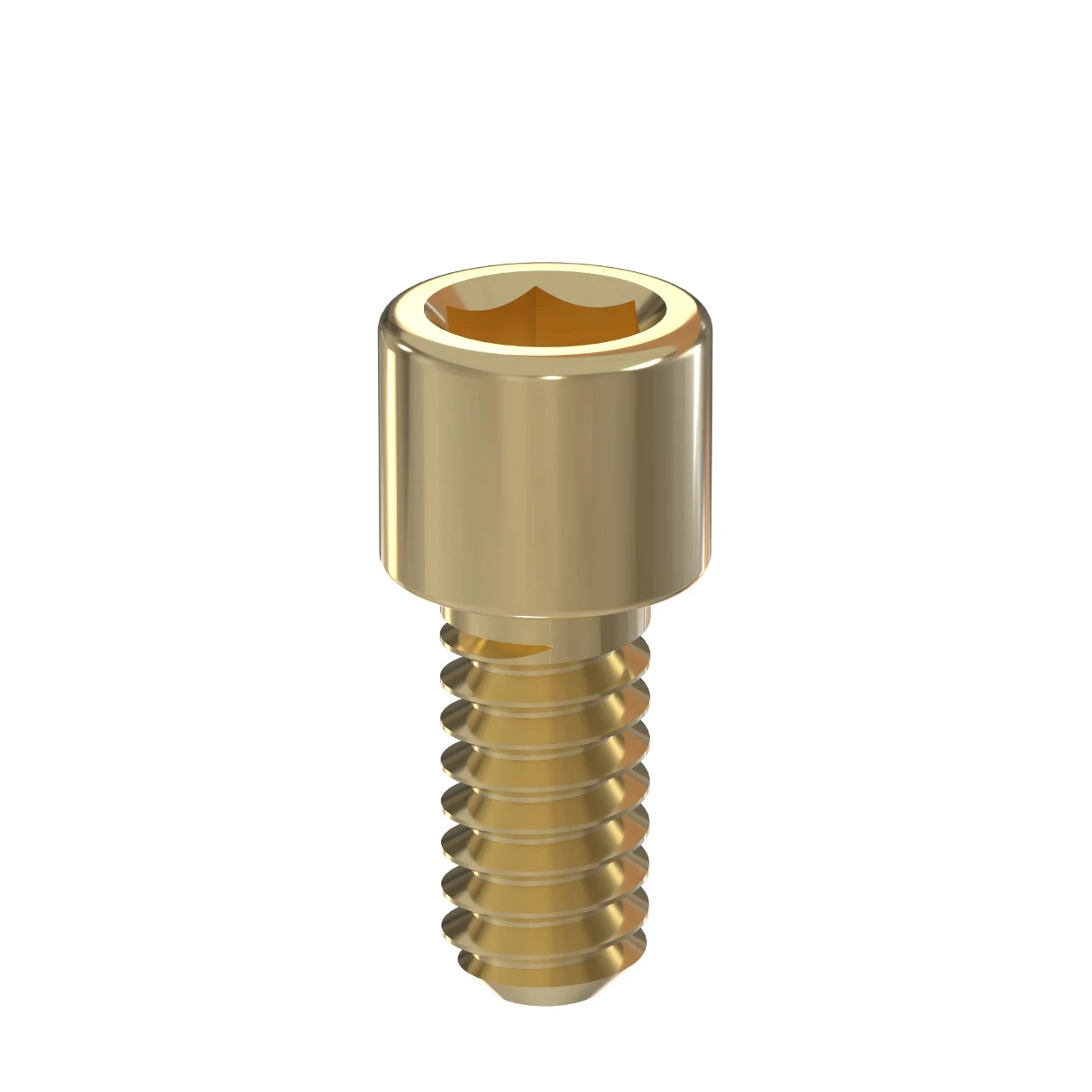

- Pack of 100 Uni Prost AS screws
- Pack of 10 Gen30 AS screws
- Medium 1.25mm Hex Latch Driver
- Medium UBH30 Latch Driver
Supremely accurate dental implant scanners
- ± 6 micron repeatability*
- Battery-powered and wireless
- Touch Screen LCD display
- Free software
- Affordable hardware
- Open platform
Features we are proud of...
- Ease Of Use
- Accuracy
- Small posts and Narrow camera separation
- Small posts are more convenient to use.
- Wi-Fi
- Convenient scanning - no messy cables!
- Affordability
- Highly competitive pricing. We started on a crusade against overpriced medical technology.
- Positional Repeatability*: ± 6 µm
- Angular Repeatability*: ± 1/30th of a degree
- A narrow camera separation allows more reliable capture of posts at the back of the mouth.
- Achieving such high accuracy with small posts and a narrow camera separation is only possible thanks to our "Iterative Noise Reduction" system.
- Touch screen LCD Display
- Li-ion
- Built-in display - no rubber necking to a laptop.
Full specifications:
The Tupel 3D implant scanner measures implant positions by using marker posts and a camera system. The output is an .STL CAD file of the implant positions that can be used as the basis for your next design step.
Accuracy
- Positional Accuracy*: ± 9 µm
- Positional Repeatability*: ± 6 µm
- Angular Repeatability*: ± 0.034° (1/30th of a degree)
- Operating temperature: 23ā°C ± 5 ā°C
- Operational in ambient lighting up to 5000 lux.
*Please download our Accuracy report for full test details.
Scan Time (typical)
•Calibration: 1 min 30 sec typical.
•Scan time: 20 sec typical
(but depends on the number of posts and CPU cores).
Hardware Features
•Cameras: 2 x 2MP global shutter
•Battery Life: Up to 25 scans / 2.5 hours of standby
•Charge Time: 2.5 hours
•Battery Type: Lithium-ion
•Dimensions (l w h): 14.2 x 11.8 x 9.7 cm (approx. 6” x 5” x 4”)
•Weight (scanner only): 650g
•Storage temperature: 5 ā°C to 40 ā°C
(10ā°C to 25 ā°C for optimum battery longevity)
Software Functions
•Auto calibration
•Real-time scanning feedback
•Able to scan 6 posts per scan
• Auto-merge can combine up to 10 posts per jaw.
•STL and coordinate export
•Iterative Noise Reduction for enhanced accuracy.
PC Requirements
•Windows 10 & 11
•RAM: 16 GB recommended, 8 GB minimum.
•CPU: > 8 cores recommended, 4 cores minimum.
Connectivity and Power Supply
•USB 2.0, USB 3.0, or Wi-Fi Data Transfer.
•Input Voltage: AC 110V – 240V, 50/60Hz, converted to 5V 4A.
•PSU supplied with a UK, EU, US, or AU plug type, depending on your location.
•Power consumption: 15W typical.

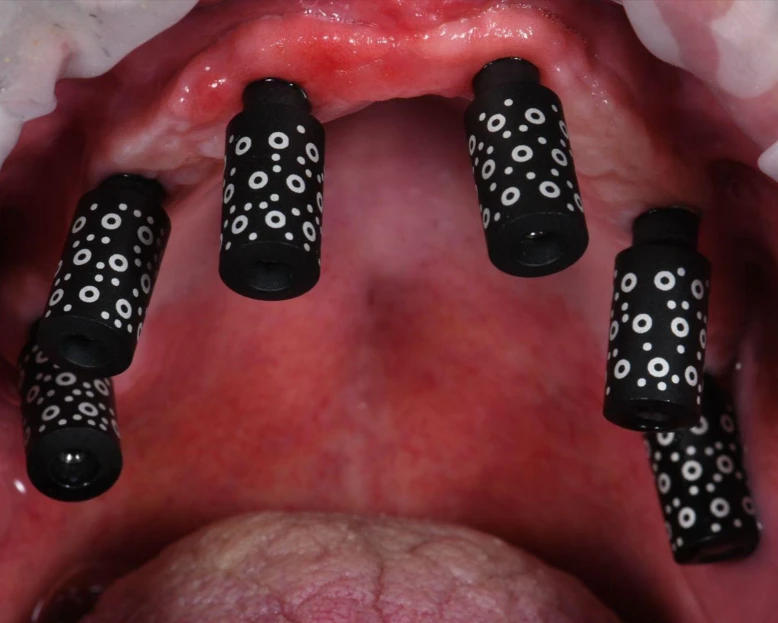

Posts and Scan Bodies
• 6 Dot posts and 6 Scan Bodies are supplied with each scanner.
• To fit Multi Unit Abutments - generally speaking, the shape of the MUA and the retaining screw are universal and the majority of implant companies follow this design.
• They are compatible with Nobel BioCare, BioHorizons, 3i, Megagen, Hiossen, Neodent, BSB, Astra EV Multibase, and CM Connect and many more.
• They are autoclavable and reusable.
• If lost or damaged, they can be individually replaced, keeping your costs low.
• If you need a custom design of dot post, we can do that (please contact us to discuss).
Posts
• Size: 7mm diameter, 13.6mm height, M1.4 thread.
Scan bodies
• Exocad libraries freely downloadable.
• Do you want to use your own scan bodies? Just send us its STL and we will add it as an export option. Free of charge.
