Product Description
High Accuracy:
C5 grade high precision ball screw and P grade guide rail.
High resolution encoder servo control system.
5 μm repetition accuracy.
Ball bearing made of hybrid ceramic for the highest concentricityļ¼3um.
Zero point quick change accuracy ≤5um.
Stable:

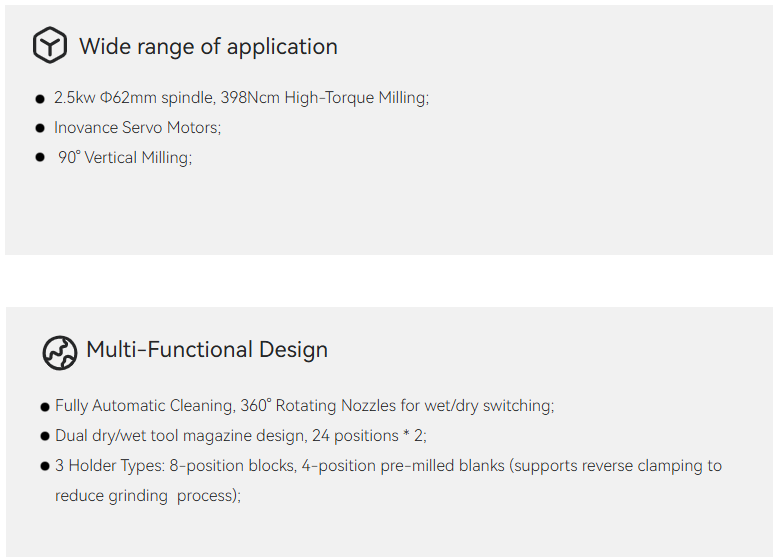

2.5kw Φ62mm spindle.
Floor-mounted integrated casting is stronger and more stable.
Stainless steel A B axis Support, strong intensity.
Professional water-cooled spindle, longer life.

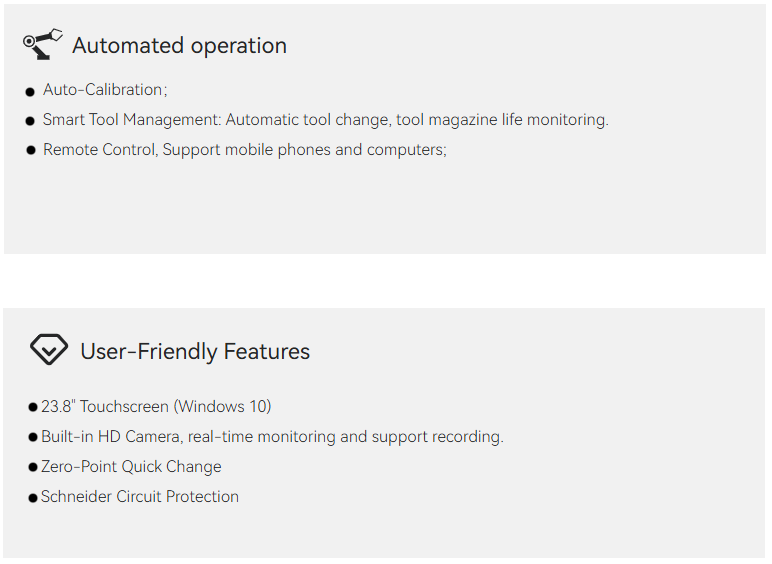

Titanium column auto-calibration
Glass-ceramic auto-calibration.
Maximum Variety:
Large rotation angle, A axis ±360°, B axis ±30°.
C-CLAMP holder suitable for processing φ98*35mm(max) zirconia discs,
resin discs, titanium discs…and support 90° milling
8-position block holder suitable for glass ceramic.
4-position premill abutment holder with reverse clamping capability to
avoid machining and grinding of titanium premill blanks.
Smart:
Windows10 operating system.
Wifi file transfer.
Built-in camera for real-time monitoring.
Easy to Operate:
Secondary filtration system.
The observation window is easy to maintain.
Dry-wet conversion and separation are easier, pipeline separation.
Smart safety lock for the equipment.
